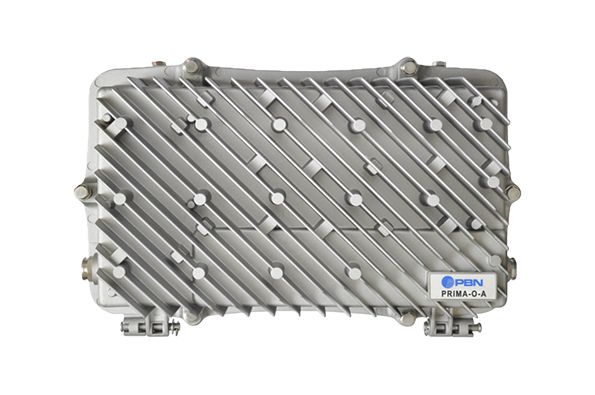

PBN PRIMA-O-A Node

Key Features and Functions

• Shared optical modules and accessories with ODN2000, leveraging sparing and training
• Advanced Gallium arsenide (GaAs) RF hybrid technology provides excellent performance with four individually amplified high-level outputs with more than 55 dBmV each at 1000 MHz
• High output power supports Node+0 architecture
• Can be seamlessly upgraded from an RF amplifier to an optical node
• Return-path lasers are available for 1310 nm or for CWDM applications on one return fiber at 1470/1490/1510/1530/1550/ 1570/1590/1610 nm
• Optical transmitter/receiver modules and RF amplifier can be individually installed, removed, or replaced. The modular design reduces downtime and simplifies maintenance
• Standard attenuator pad to control both attenuation and equalization
• Dedicated KS 5/8" AC input for remote power. Auto-ranging 60/90 Vac power supply
• Optional DOCSIS transponder to fully integrate forward and return path transmission signals
• Same housing can be used for remote phy node upgrade in future
• Remotely (future) or locally manageable and upgradable
• Forward path receivers and return-path transmitters provide redundancy protection
• Flexible input switching possibilities for CATV source redundancy (option)
